Aperçu /Produits/machine de marquage de fibre/Laser Marking Most Popular Desktop Slot 3d Fiber Laser Marking Machine Mini Portable Raycus 30w 50w 70w 100w

Laser Marking Most Popular Desktop Slot 3d Fiber Laser Marking Machine Mini Portable Raycus 30w 50w 70w 100w

1 Piece
MOQ
$2,340.00(1 - 4 Pieces) $2,250.00(5 - 9 Pieces) $2,160.00(>=10 Pieces)
Prix
Laser Marking Most Popular Desktop Slot 3d Fiber Laser Marking Machine Mini Portable Raycus 30w 50w 70w 100w
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Application: Laser Marking
Working Accuracy: other
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg
Laser Type: Fiber, Fiber
Condition: New
CNC or Not: Yes
Cooling Mode: WATER COOLING
Control Software: Raycus
Laser Source Brand: Fiber
Control System Brand: Raycus
Marking Head Brand: /
Weight (KG): 200 KG
Key Selling Points: High-accuracy
Warranty: 2 years
Applicable Industries: Retail, Printing Shops, Other, Advertising Company
Marking Area: 200mm*200mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: Motor, Other, Bearing
Name: Fiber laser Engraving/marking machine
working area: 200*200mm
Controller: JCZEZCAD
customize: Yes
Support format: PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF
cooling mode: water cooling
Laser power: 20w/30w/50w/100w
Applicable material: Metal and nonmetal
Working table: Steel
Certification: ce
After-sales Service Provided: Online support, Video technical support
After Warranty Service: Video technical support
Local Service Location: None
Showroom Location: None
Marketing Type: Other
Informations de base
Certification: ce
Conditions de paiement et expédition
Packaging Details: Wooden box
Supply Ability: 500 Box/Boxes per Week
Description de produit
Most popular Optical Split 3d Desktop Mini Portable Raycus 30w 50w 70w 100w Fiber Laser Marking Machine

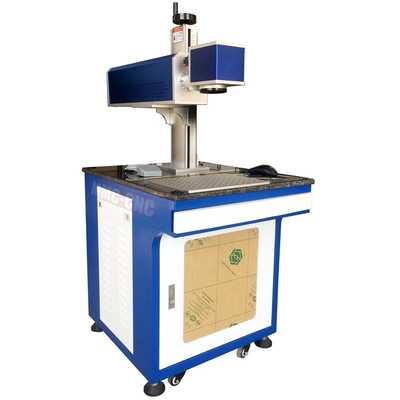

Machine Photos
Machine Specifications
Model
MMC-2020F
Laser Type
Fiber laser engraving/marking machine
Laser source
Raycus/JPT/MAX
Laser power
20W/30W/50W/100W(Optional)
Weave length
1064 nm
Marking area
100*100mm,150*150mm,220*220mm,300*300mm,500*500mm(Optional)
Laser repetition frequency
20KHZ-80KHZ
Beam quality
M²:1.5
Marking speed
7000-12000mm/s
Marking depth
0.01-1mm
Repetition Precision
0.01mm
Minimum Line Width
0.017mm
Minimum Character
0.2mm
Cooling Style
Air cooling
Positioning Way
Red light
Control software
JCZEZCAD 2.12 Professional fiber laser marking software
Supported Format
PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC
Control board
JCZ
Operating Voltage
AC220V
Gross Power
≤800W
Supported Windows
Windows XP,7,8,10
Material can be processed
All metal material and part of non-metal material,such as hard plastic
Others
USB cable for connection, Flash drive with software and English manuals.
Packaging
Wooden box
PackagingDimension
880*870*1270mm
Gross weight
180KGS
Machine Samples
About Us


Shandong MMC Machinery Co.,Ltd is a professional manufacturer for cnc router, laser cutting machine, plasma cutting machine and laser welding machine etc are used for Woodworking, Metal and Advertising industry.
Our Advantages
1. Price advantage, we are a manufacturer, we have the best price with the same quality, we have the best quality with the same price. 2. Technical advantage, the technician team in our factory can provide quick technical answers. 3. Machine quality advantage, the machines produced by our factory, it needs to go through rigorous production and testing. 4. After-sales advantage, we can reply within 12 hours in the after-sales problem.
Company Certifications
Package and Delivery
FAQ
Q1.If there is any technical help after we receive the machine? A:Yes, we supply 24 hours online service for free. We have perfect after-sale service team to supply technical support to our customers. Our technical can assist you to install machine after you receive machine. Q2: Do you have CE document and other documents for customs clearance? A: Yes, we have CE, after shipment we will send you Packing list/Commercial Invoice/ Sales contract for customs clearance. Q3: If I want to visit your factory, how can I contact? A: Just send us your online contact number, we will discuss and make a detailed arrangement according to your time. Q4.How can I choose the most suitable machine ? A: Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking? What kind of materials mainly? Cutting/engraving, Max thickness for cutting? How big working area you need? Q5: How about warranty? A: 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period. Q6.If there is some problems for some parts during warranty period, will your company repair or replace for me? A:Yes, we will send new machine parts to you within warranty time for free. PS: Not including the consumable parts and Man-made damage. Q7.How long can delivery the machine ? A:Common machine can be delivered within 3~10 working days.
